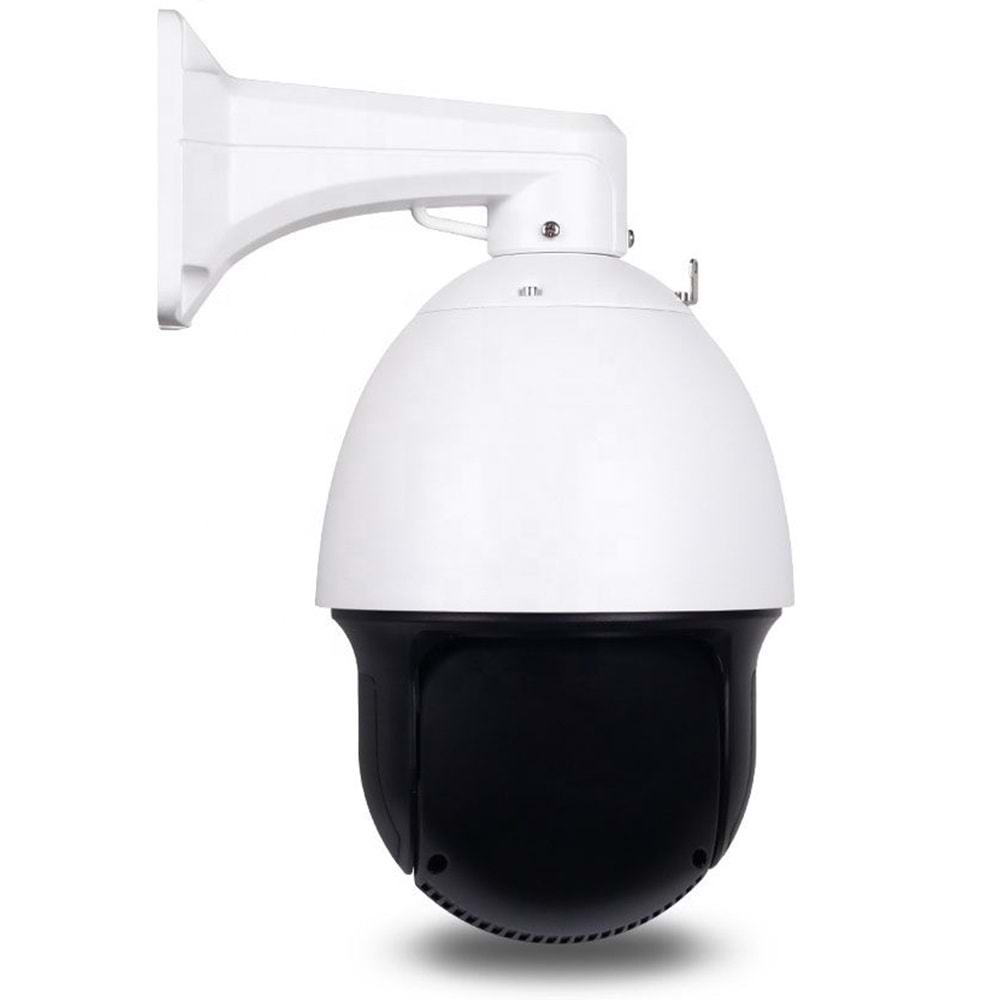

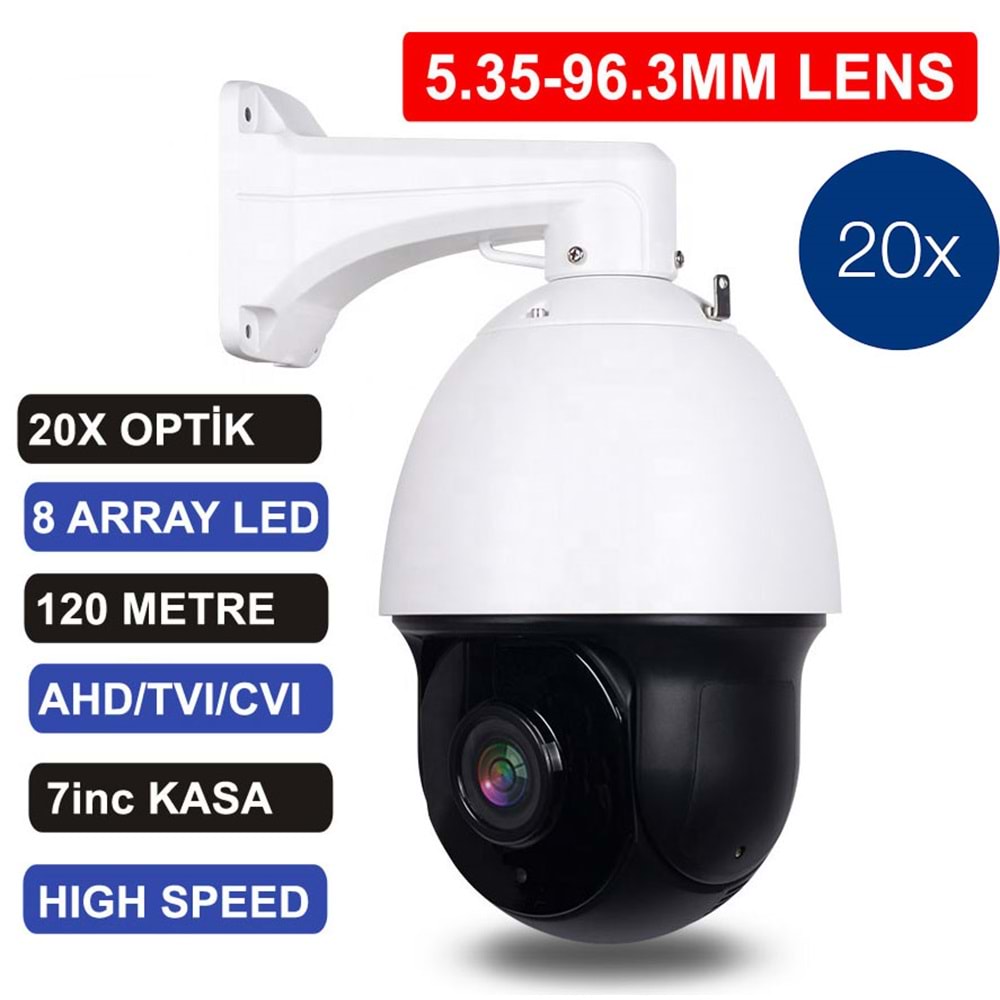

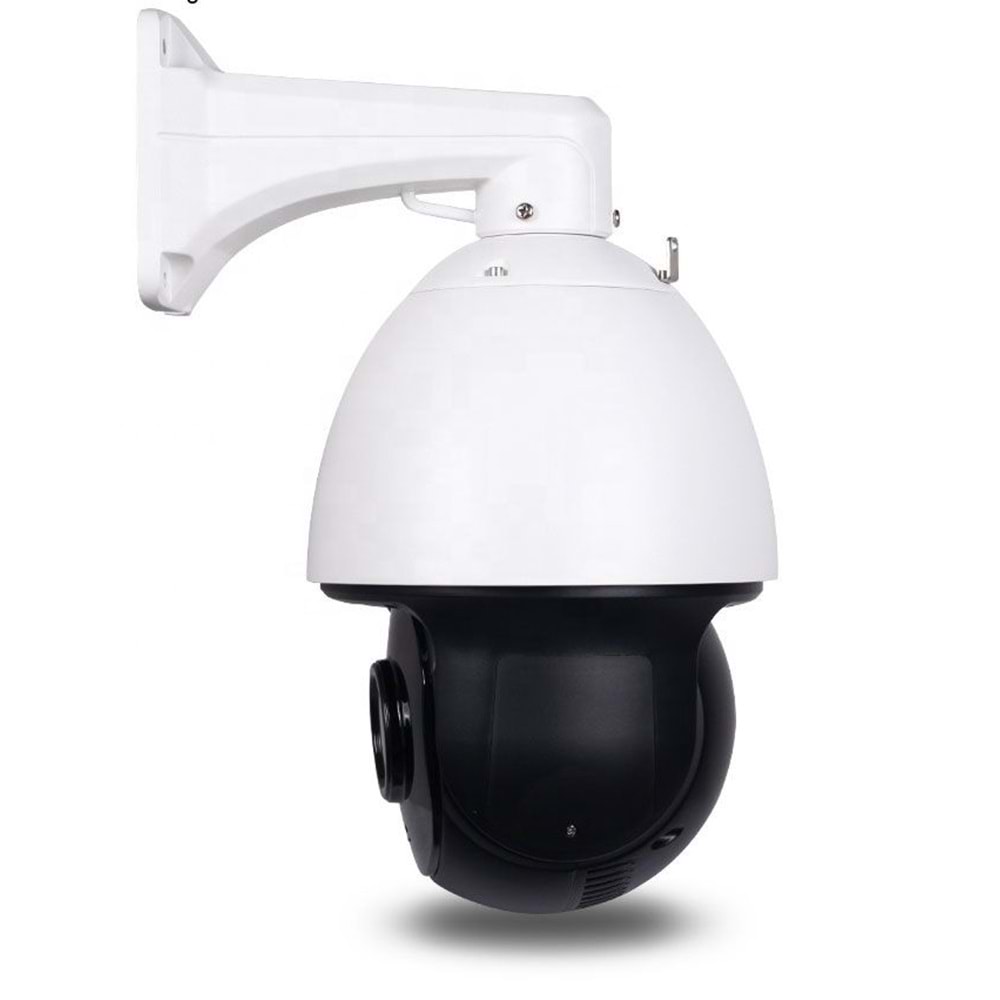

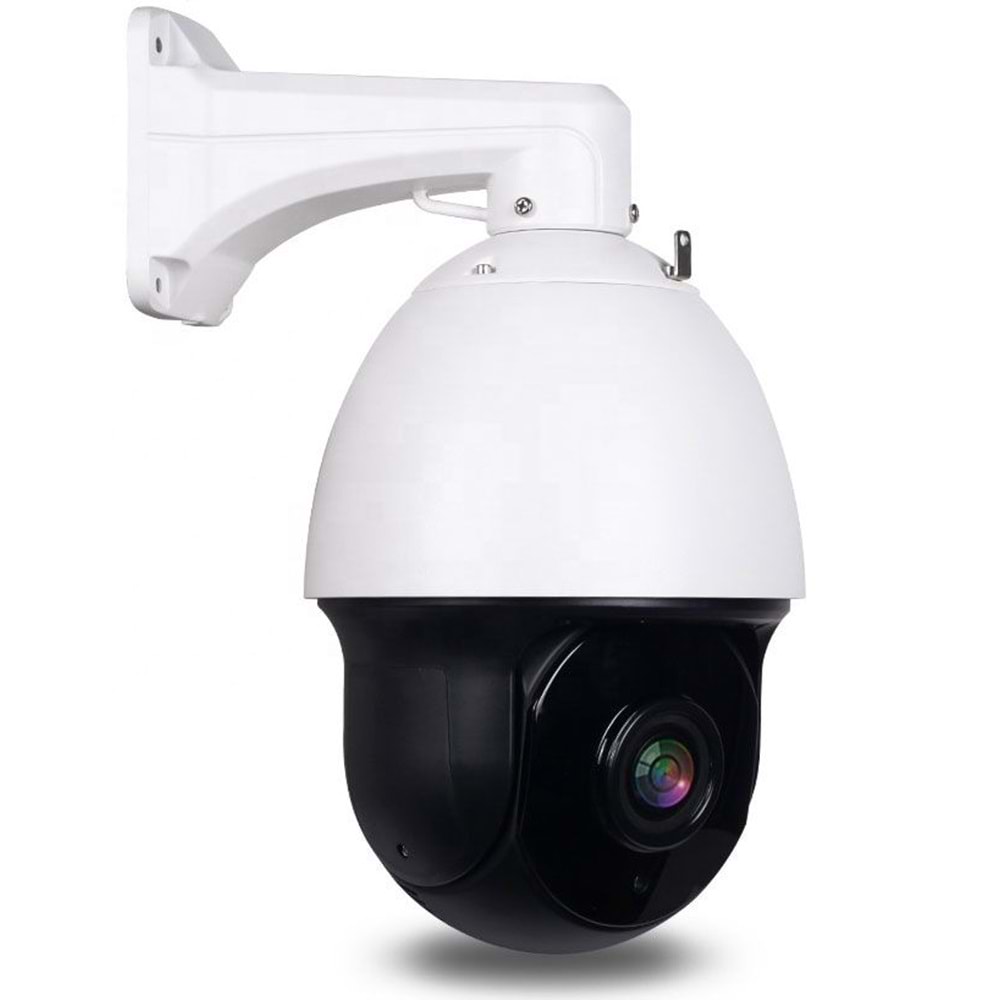

OPAX-HD8610 AHD 2 MP SONY SENSÖR 20X 8 ARRAY 120 M AHD SPEED DOME KAMERA
- OSD menu
- AHD/TVI/CVI/CVBS able
- Real time transmission,loss less video
- Long distance transmission up to 300 meters with Cable
- 7″ Total Metal Housing, IP66 rate protection
| mage Sensor | 1/3” 2MP CMOS |
| DSP | NVP2441 |
| Sensor | SONY307 |
| Resolution | 1920x1080P |
| Min.Illumination | 0.1Lux at Color 0.01Lux at B&W; 0.01Lux at Color 0.001Lux B&W |
| Lens | 20X F=6-96mm Varical Lens |
| Video Output | AHD/TVI/CVI/CVBS |
| S/N Ratio | 3D DNR >50dB |
| Day/Night | Auto(ICR)/Color/B/W/Manual |
| WDR | DWDR >90dB |
| Pan Rotation Range | 0°~360° |
| Tilt Rotation Range | 0°~93° |
| Rotation Speed High | : Pan 0~200°/s, Tilt 0~100°/s Medium: Pan 0~100°/s Tilt:0~80°/s |
| Auto Flip | Horizontal 180° & Vertical 93° |
| Prset Points | 220pcs |
| A-B Scan | 1-9 grades |
| Guard Tours | 3 groups ( each group 16 preset、dwell time and speed able) |
| Motion Detection | Support |
| Communication Mode | RS485 |
| UTC | Support |
| Power | DC 12V 4A / AC 12V 3A |
| Operation Temperature | -40℃~+60℃ |
| OSD Language | Chinese, English |
| Consumption | ≤25W |
| Ingress Protection | IP66 |
| Lightning Protection | 6000V |
| Housing | ABS Plastic + Aluminum |
| LED | 8PCS IR LED |
| IR Distance | up to 120 meters |
| Certification | RoHS/CE/FCC |
| Bracket | Wall / Celling Mount |
